Precision Vise Clamp

Stark Precision proudly introduces the revolutionary and highly versatile machinery vise clamp. The expertly designed raised rear foot bridges the standard width of a slotted worktable regardless of the angle and it generates an increased gripping force at both contact points of the clamp, securing it to the worktable. The Vise Clamp eliminates the need for multiple pieces while providing added safety

Features


The Vise Clamp and its T-bolt are investment castings made with 17-4 stainless steel. The nut is 17-4 stainless steel. All components of the Vise Clamp are heat-treated to Rockwell 40+ hardness.

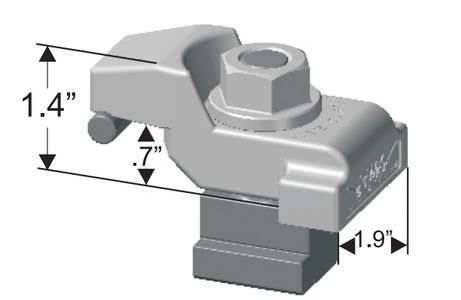

The 1.4 inch low profile designs, 1.9 inch foot width and 3.0 inch overall length can be mounted and used on the entire worktable. The .3150 (8mm) pin allows the Vise Clamp to be used on vises with a lip edge, and providing the maximum torque clamping to the worktables.


The T-bolt thread is .5512 (14mm) for greater stability and durability.

The 30-degree beveled front edge allows for angled mounting and enhanced stability. The T-Bolt nut size is a 7/8 US nut size, standard in the US machining trade
